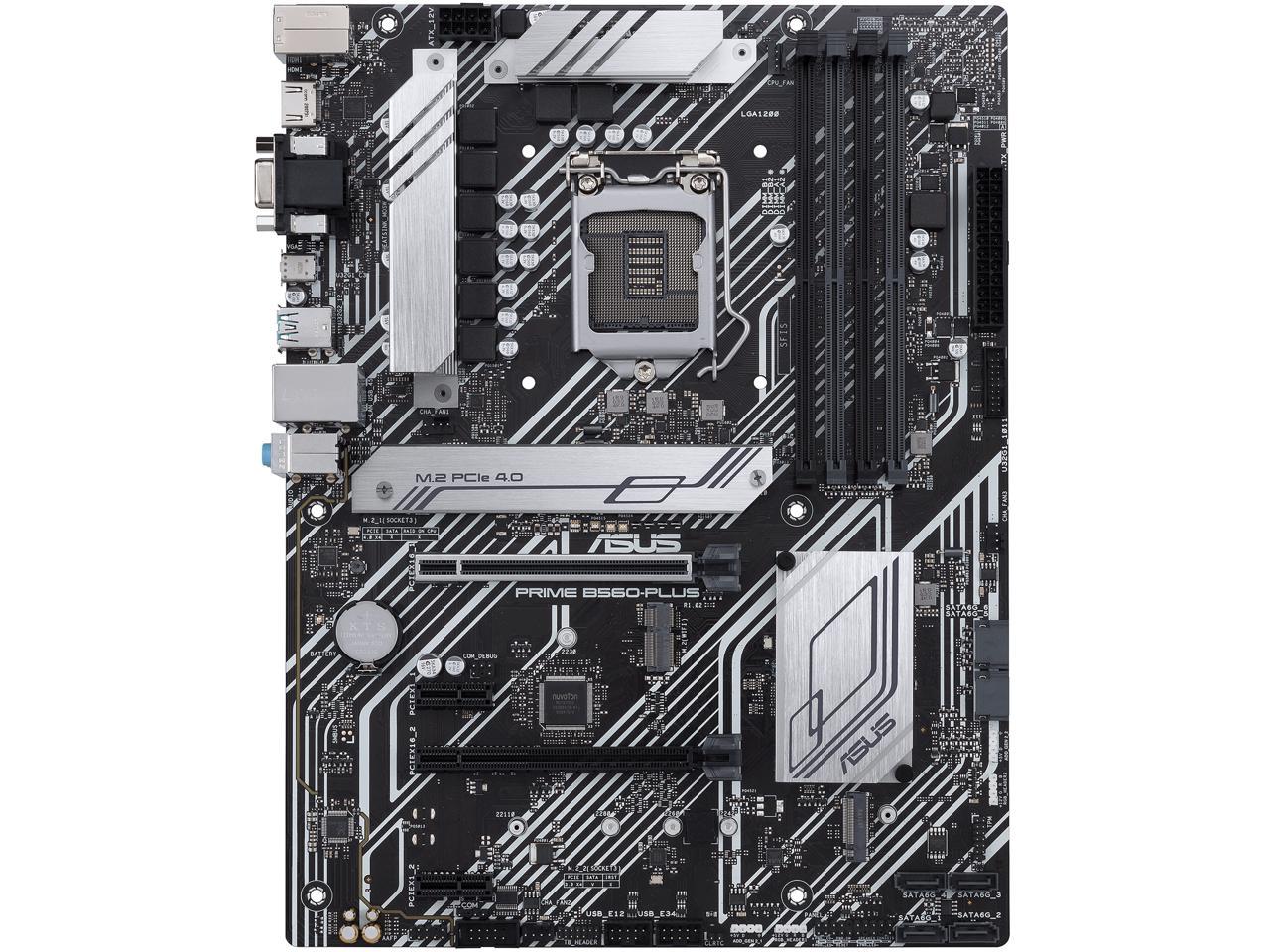

Asus PRIME B560-Plus ATX Mainboard

$144.00

FORM FACTOR: ATX
SOCKET TYPE: LGA 1200

Tags: , ,
Model PRIME B560-PLUS
Supported CPU
CPU Socket Type  LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors** Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset  Intel B560
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133*

* 11th Gen Intel Core processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory.
PCI Express 3.0 x16 1 x PCIe 3.0 x16 *

* Supports x4 mode.
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory.
PCI Express x1 2 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 Intel 11th Gen Processors:
- M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x4 )
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUsIntel B560 Chipset:
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x4 & SATA mode mode)

* When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
* When an Intel SSD is connected to a CPU-attached slot, only pass-through Single Volume mode in Intel Rapid Storage Technology will be available.
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  7.1 Channels*

* A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps

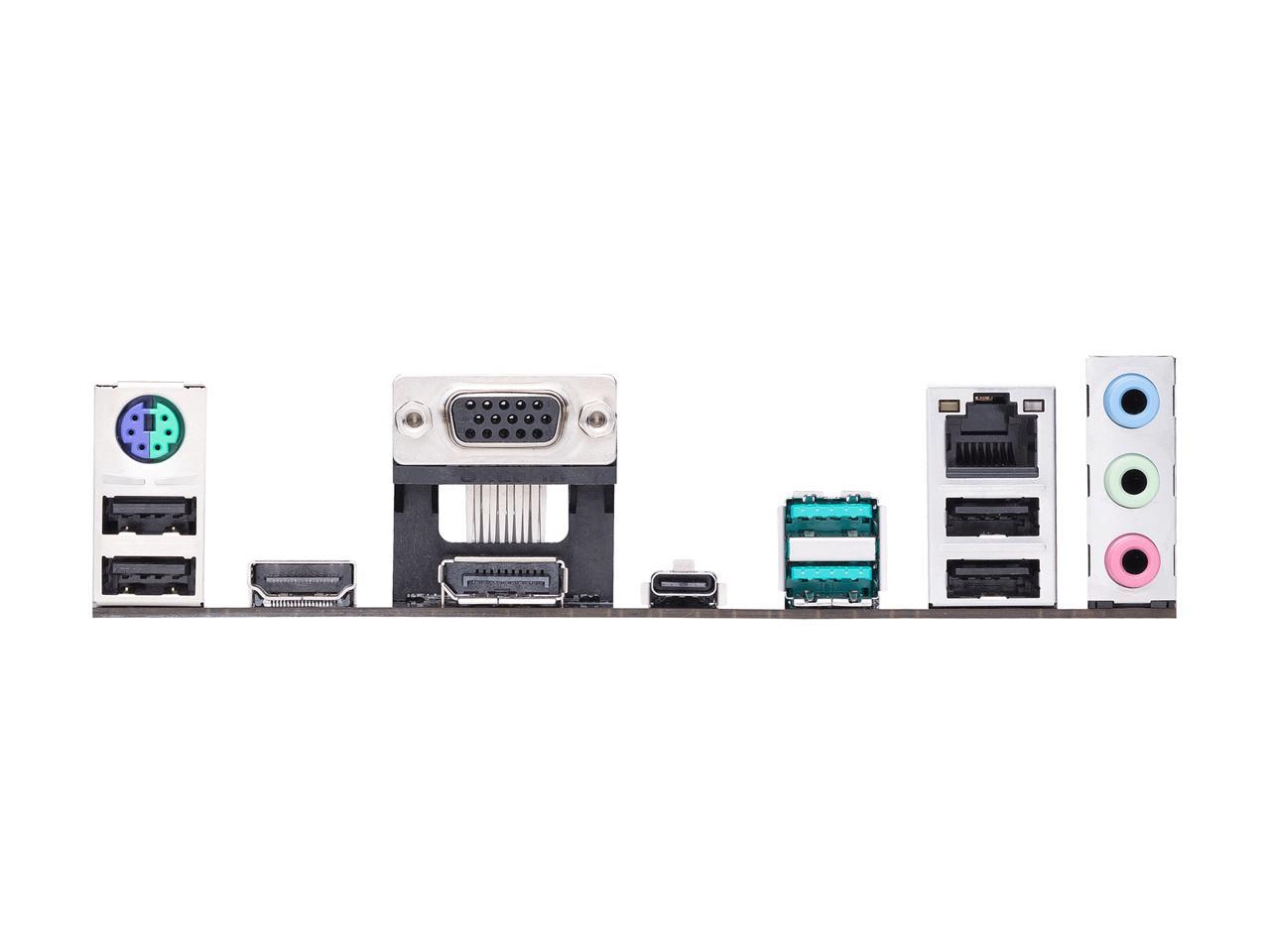

Rear Panel Ports
Back I/O Ports 1 x DP port
1 x HDMI port
1 x D-Sub port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
1 x Intel I219-V 1Gb Ethernet port
4 x USB 2.0 ports (4 x Type-A)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x USB Type-C)
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS jumper
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x 20-3pin System Panel header with Chassis intrude function
1 x SPI TPM header (14-1 pin)
1 x Thunderbolt 4 header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.2"
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
