Asus Prime X570-P ATX Mainboard
$162.80
FORM FACTOR: mATX
SOCKET TYPE: AM4
| Model | PRIME X570-P |
|---|
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. |
| Chipset | AMD X570 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | 3rd Gen AMD Ryzen Processors 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory capacity supported vary depending on the CPU you installed. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode)AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) |
|---|---|
| PCI Express x1 | 3 x PCIe 4.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 3rd Gen AMD Ryzen Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors VGA output support: HDMI port - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz |
|---|
| Audio Chipset | Realtek S1200A High Definition Audio CODEC |
|---|---|
| Audio Channels | 8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |

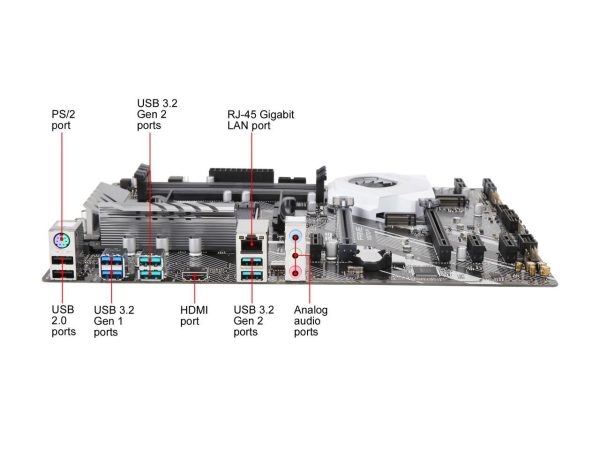

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A*) * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors |
|---|
| Onboard USB | 4 x USB 3.2 + 3 x USB 2.0 |
|---|---|
| Other Connectors | 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x PCH_FAN (1 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
| Windows 11 | Supported |
|---|
| Features | Multi-GPU Support: 3rd and 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX TechnologySpecial Features: ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM - Digital power design with Dr. MOS - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem: - Improved DDR4 Stability ASUS EPU: - EPU AURA: - Aura RGB Strip Headers - Aura Control - Addressable Gen 2 Header ASUS Exclusive Features: - AI Suite 3 - Ai Charger - Armoury Crate ASUS Quiet Thermal Solution: - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM BIOS: Manageability: Operating System: |
|---|
| Package Contents | Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Extension cable for Addressable LED |
|---|
