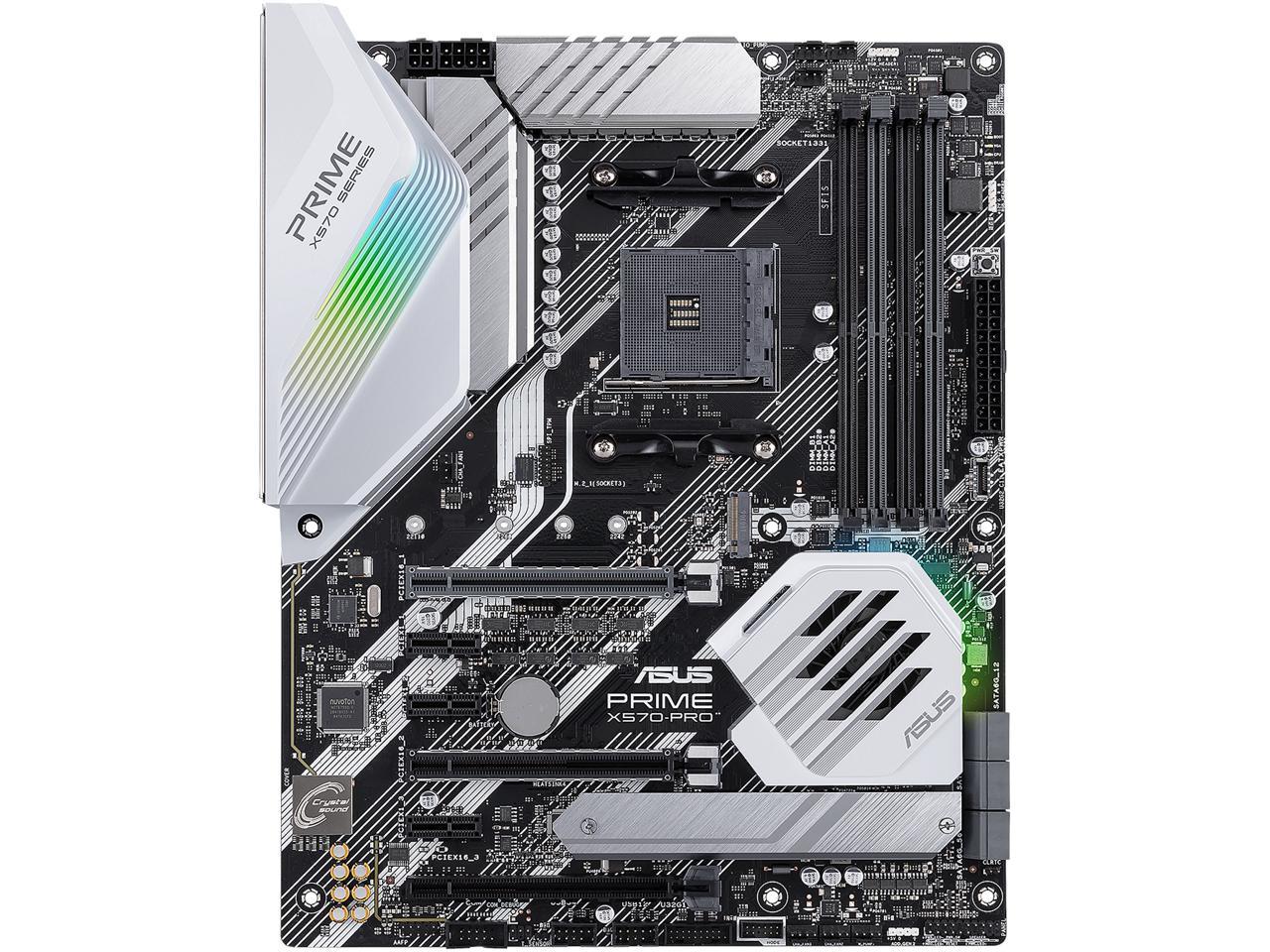

Asus Prime X570-Pro ATX Mainboard

$266.19

FORM FACTOR: ATX
SOCKET TYPE: AM4

Tags: , ,
Model PRIME X570-PRO
Supported CPU
CPU Socket Type  AM4
CPU Type AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series desktop processors
* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

Chipset  AMD X570
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard 3rd Gen AMD Ryzen Processors
DDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 3rd Gen AMD Ryzen Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
PCI Express x1 3 x PCIe 4.0 x1
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 3rd Gen AMD Ryzen Processors:
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD X570 chipset:
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Onboard Audio
Audio Chipset  Realtek S1220A High Definition Audio CODEC featuring Crystal Sound 3
Audio Channels  8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
Onboard LAN
LAN Chipset Intel i211AT
Max LAN Speed 10/100/1000Mbps

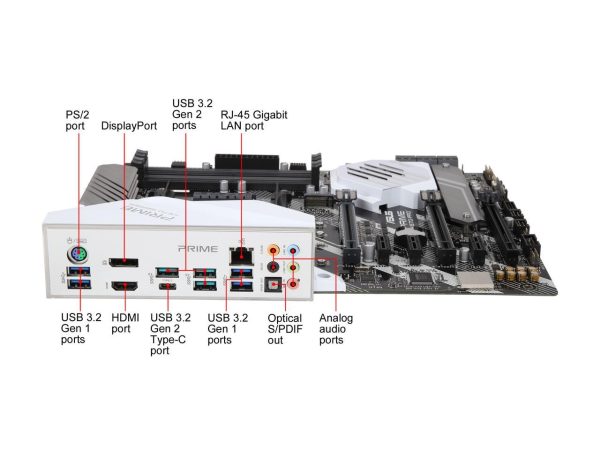

Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors 2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x SPI TPM header
1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x CPU OPT Fan connector(s) (1 x 4-pin)
3 x Chassis Fan connector(s) (3 x 4-pin)
1 x PCH_FAN (1 x 4-pin)
1 x AIO_PUMP connector (1 x 4-pin)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x Water Pump header (4-pin)
1 x T_Sensor Connector
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Windows 11 Compatibility
Windows 11 Supported
Features
Features Multi-GPU Support:
3rd and 2nd Gen AMD Ryzen Processors
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Supports AMD 2-Way CrossFireX TechnologySpecial Features:
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
DIGI+ VRM: Digital power design with Dr. MOS
EPU Guidance
TPU Insight
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications.
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM - Digital power design with Dr. MOS
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS SafeSlot - Protect your graphics card Investment
ASUS OptiMem:
- Improved DDR4 Stability
AURA:
- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Turbo LAN
- Armoury Crate
- Pre-mounted I/O Shield
ASUS Quiet Thermal Solution:
- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-ConnectorOperating System:
Windows 10 64-bit
Packaging
Package Contents Accessories:
User's manual
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Q-connector(s) (1 in 1)
1 x Extension cable for Addressable LED
