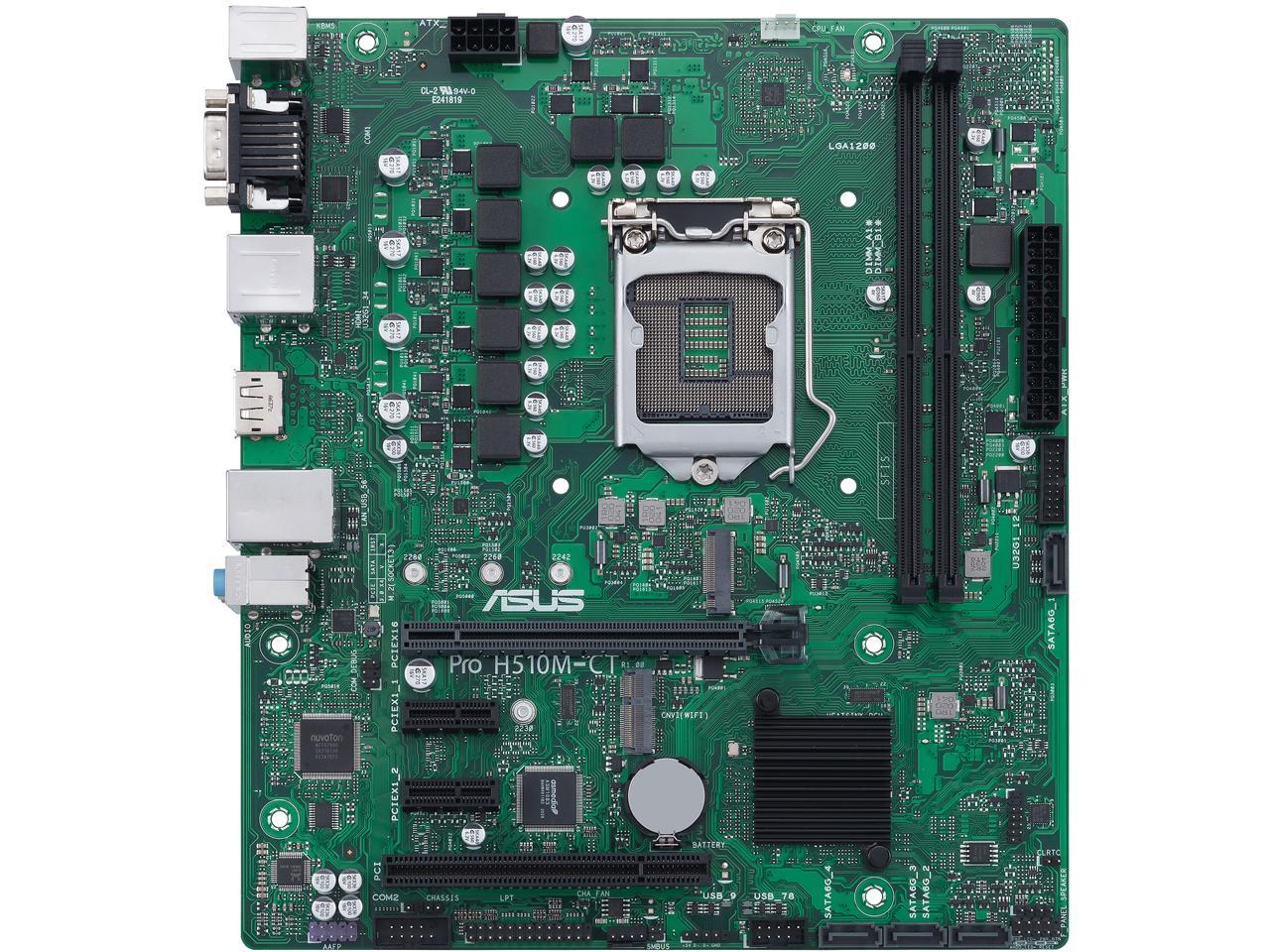

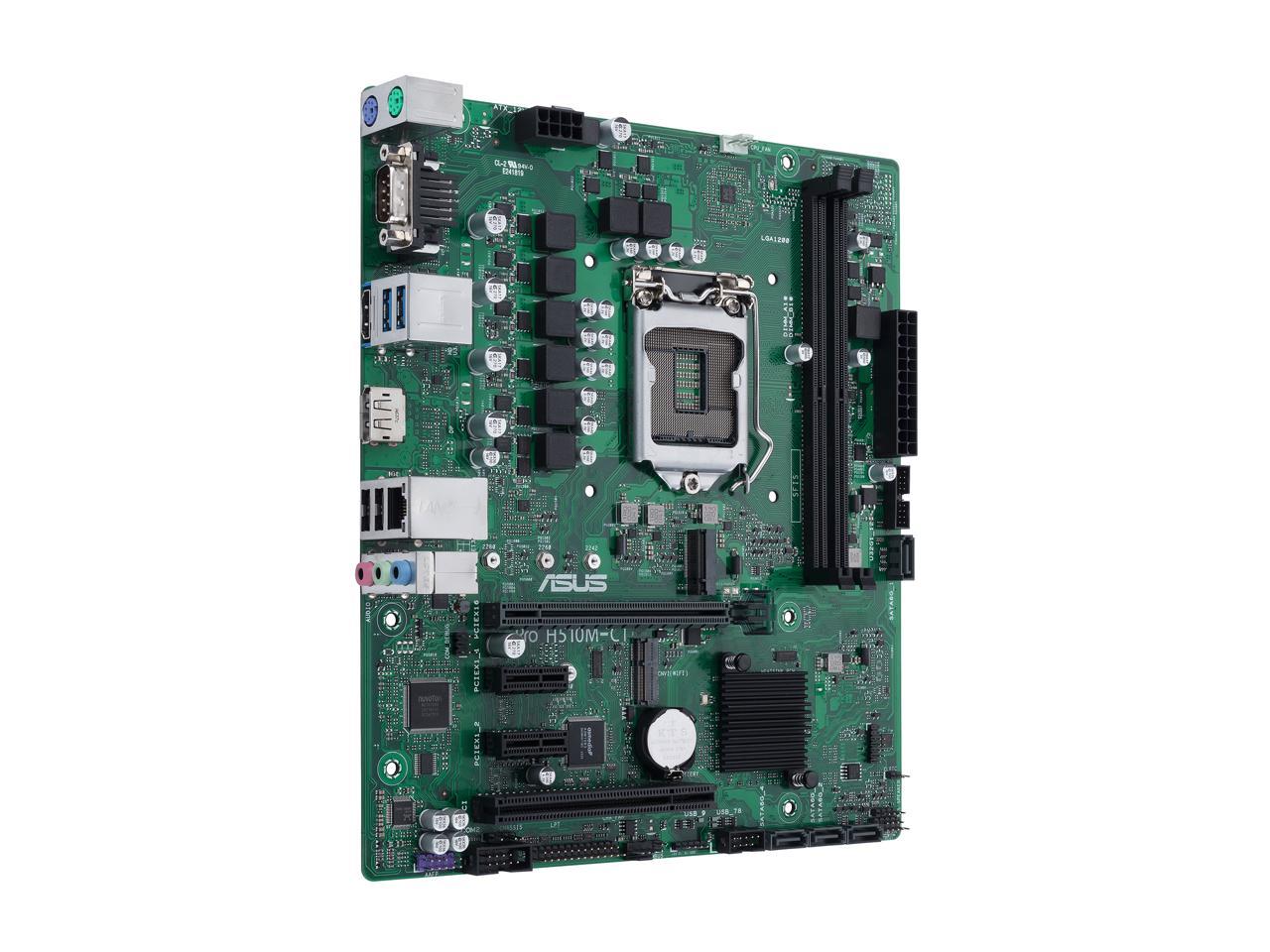

Asus Pro H510M-CT/CSM mATX Mainboard

$127.22

FORM FACTOR: Micro-ATX
SOCKET TYPE: LGA 1200

Tags: ,
Model PRO H510M-CT/CSM
Supported CPU
CPU Socket Type  LGA 1200
CPU Type Supports 11th Gen / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors** Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset  Intel H510
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133*

* 11th Gen Intel processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported 64GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCIe 4.0/3.0 x16 slot*

* Actual support may vary by CPU.
PCI Express x1 2 x PCIe 3.0 x1
PCI Slots 1 x PCI Slot
Other Slots M.2 slot only (Key E, CNVi)*

* Wi-Fi module is sold separately.
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Intel I219-V 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Miscellaneous
1 x Clear CMOS header
1 x Chassis intrusion header
1 x COM Port header
1 x Front panel audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x SMBUS header
1 x Speaker header
1 x 10-1-pin System panel header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.5"
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
